How to Set Up Chafing Dishes and Burners
Keep food warm for hours with propane-powered chafing dishes
Setup Time
10 minutes
Burners
2 units
Fuel Type
Propane
Orientation
Before you begin
Clear the pad, lay out your parts, and spot the color coding so setup flows smoothly.
Choose your spot
Pick a stable, level surface like a picnic table or camp kitchen counter, away from anything flammable and with some protection from wind. Keep the propane tank upright and secure so it can't tip.
Unpack and verify parts
Lay everything out before you start so nothing is missing mid-setup.
- Blue carrying bag with chafing dishes
- Two stainless steel chafing dishes with lids
- Two Jetboil propane burners in their carrying cases
- Two flexible braided hoses with brass fittings
- Triple propane adapter with pressure gauge
- Two metal risers with blue adjustment knobs
- Propane tank
preparation
Preparation
Unpack the dishes and burners and lay everything out

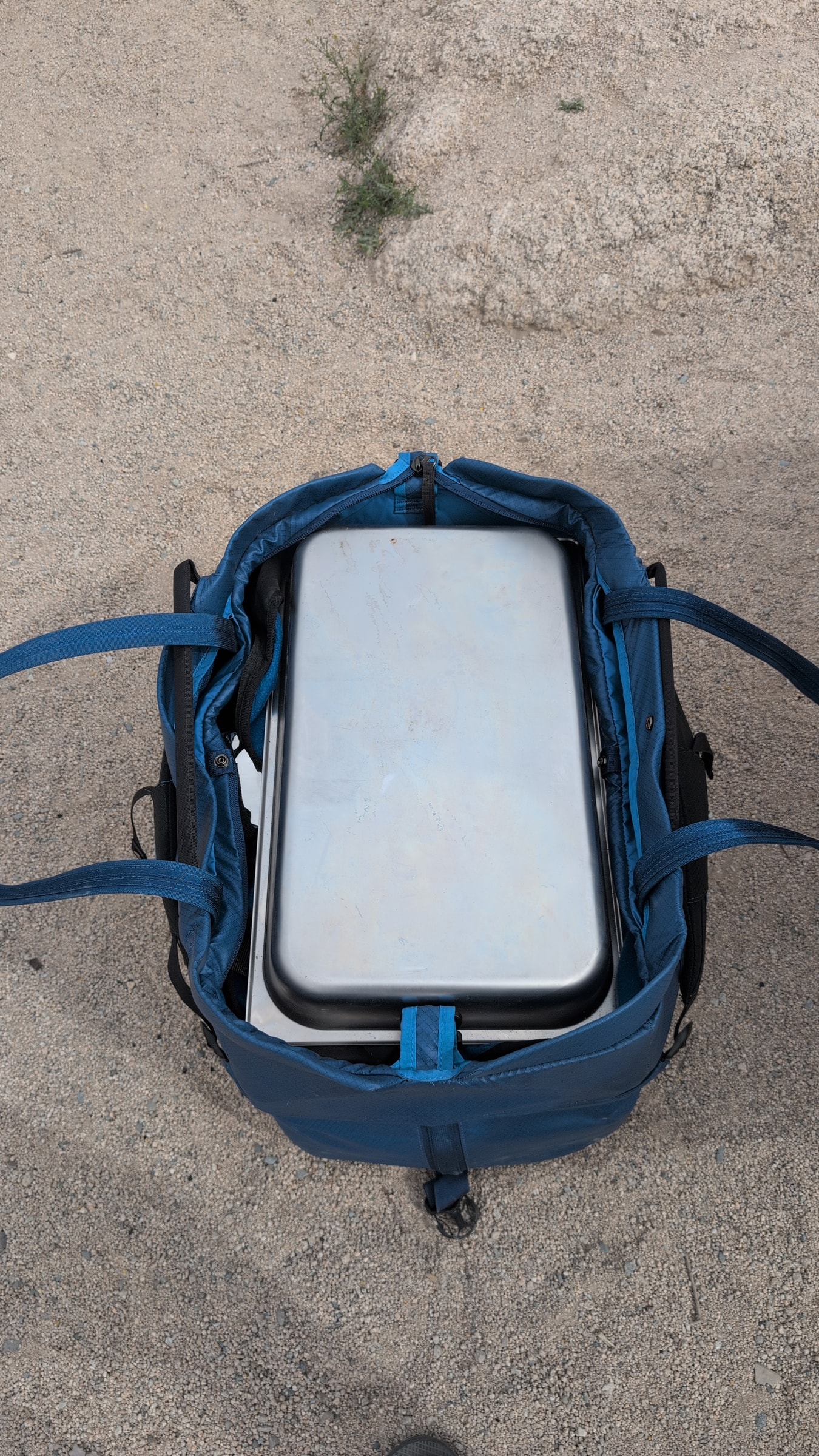

Grab the Chafing Dish Bag
Grab the Chafing Dish Bag
Find the blue carrying bag that holds the chafing dishes and set it on your prep surface. Keep the bag handy during setup so lids and small parts have somewhere clean to live.

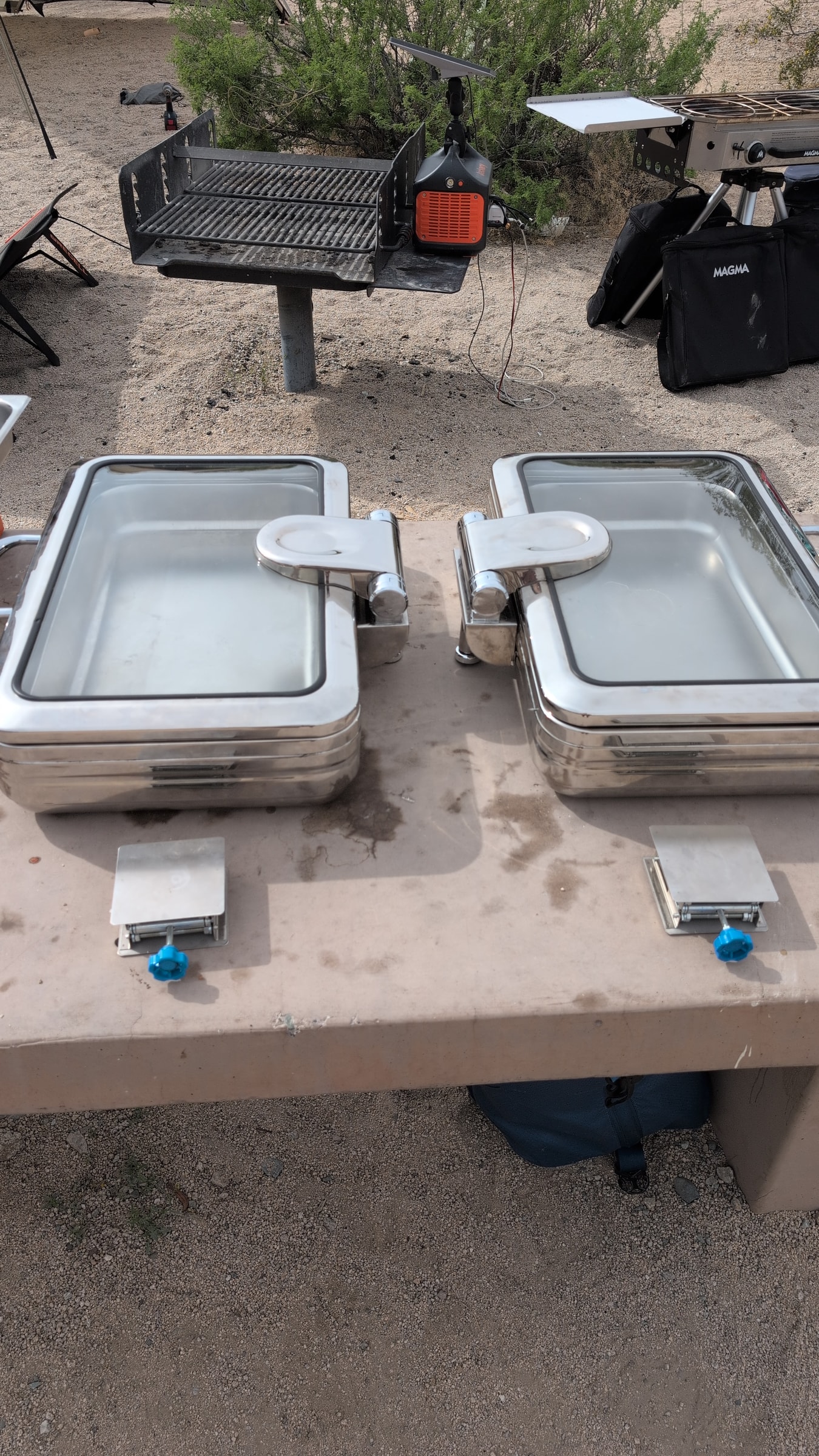

Lay Out the Chafing Dishes and Risers
Lay Out the Chafing Dishes and Risers
Take both stainless steel chafing dishes out of the bag and place them where you plan to serve. Set the two metal risers with the blue adjustment knobs next to them for use in a later step.

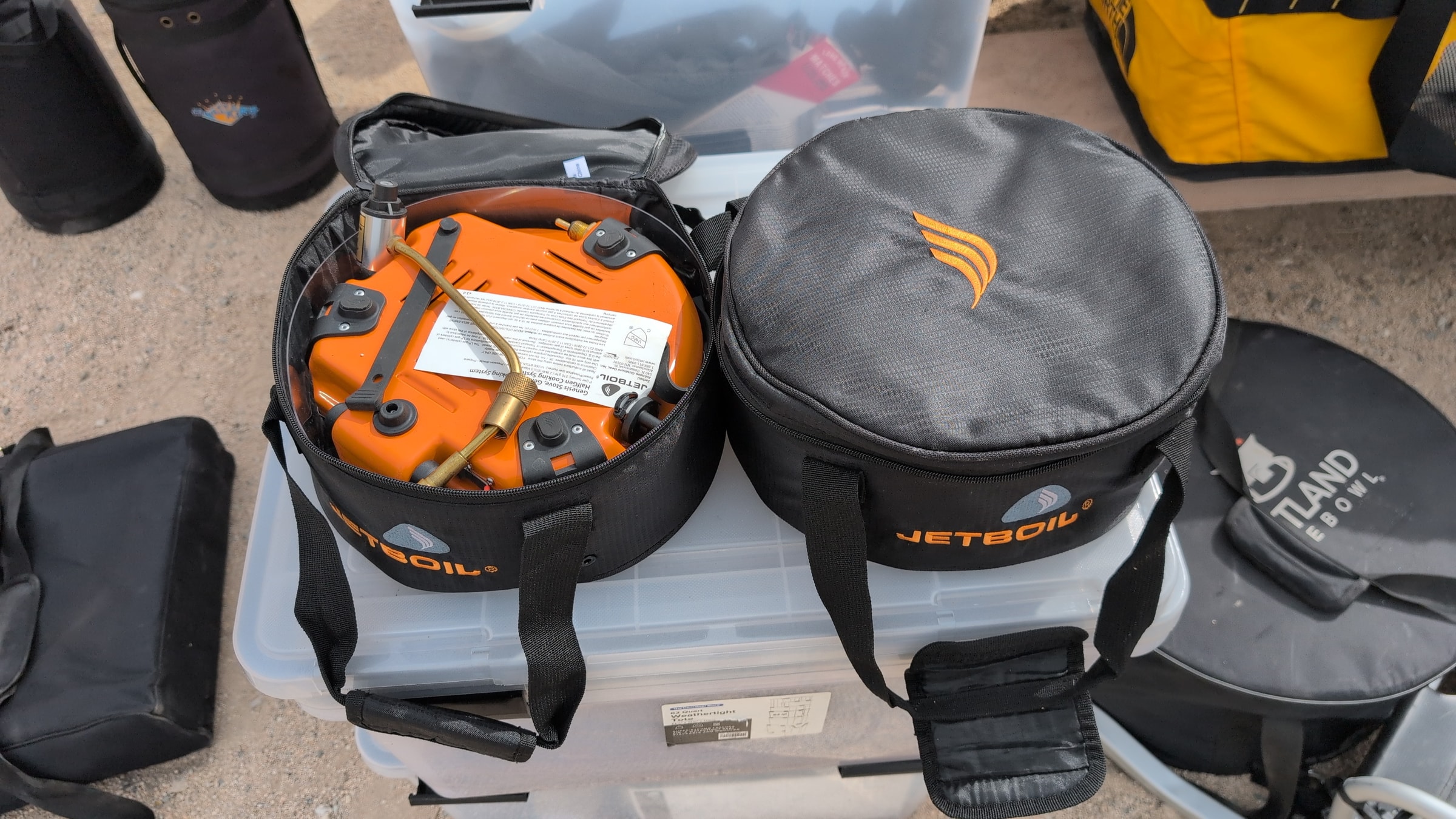

Get Out the Jetboil Burners
Get Out the Jetboil Burners
Open the two Jetboil carrying cases and remove the orange burner units. Give each one a quick look over: the fuel connection, igniter, and control knob should all be clean and undamaged.
fuel connection
Fuel System Setup
Connect the propane system before anything goes on the burners

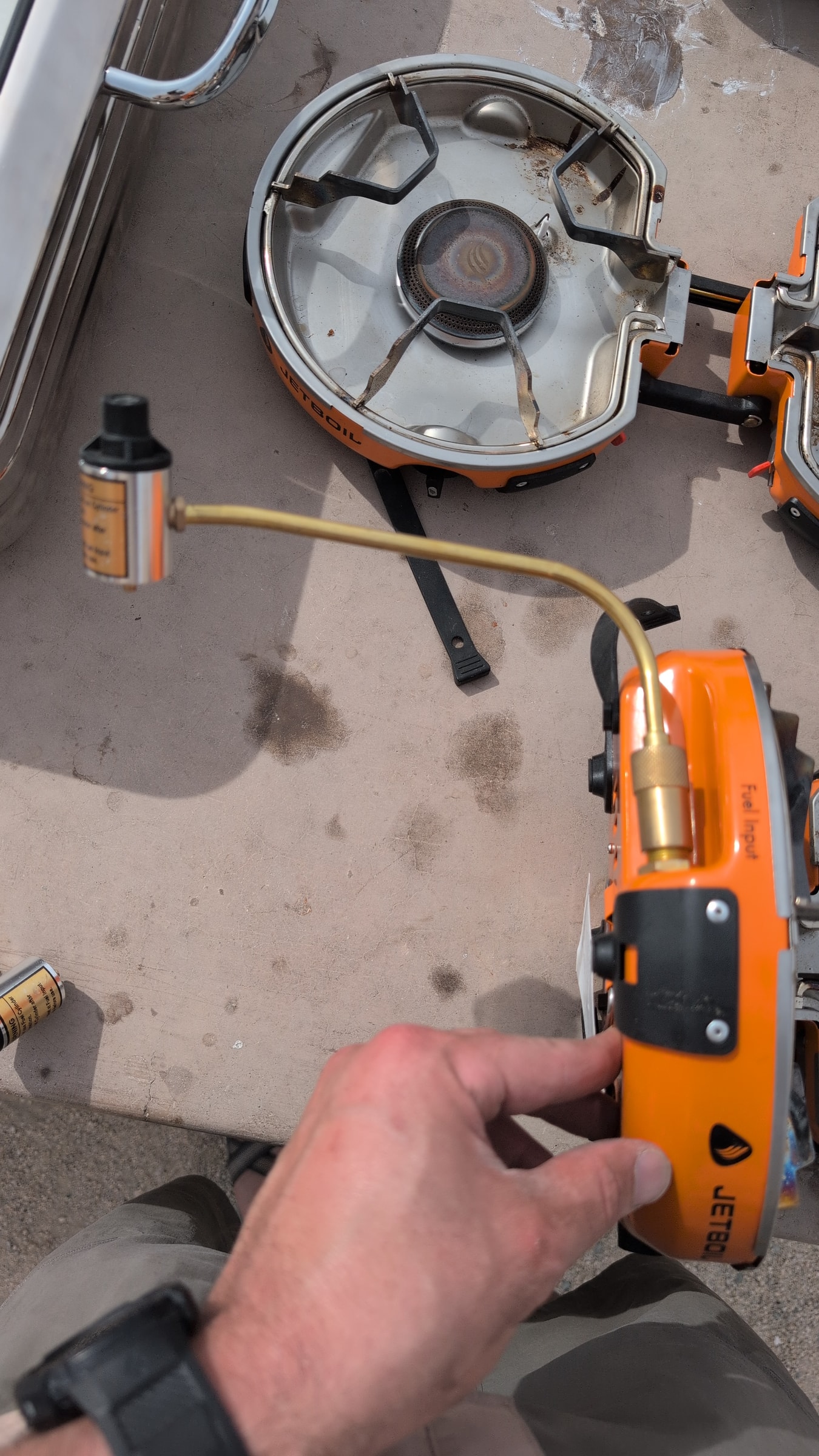

Connect the Fuel Fitting on Each Burner
Connect the Fuel Fitting on Each Burner
Thread the brass fuel fitting into the fuel inlet on each Jetboil burner. Hand-tighten until snug, with the control knobs in the OFF position while you work.

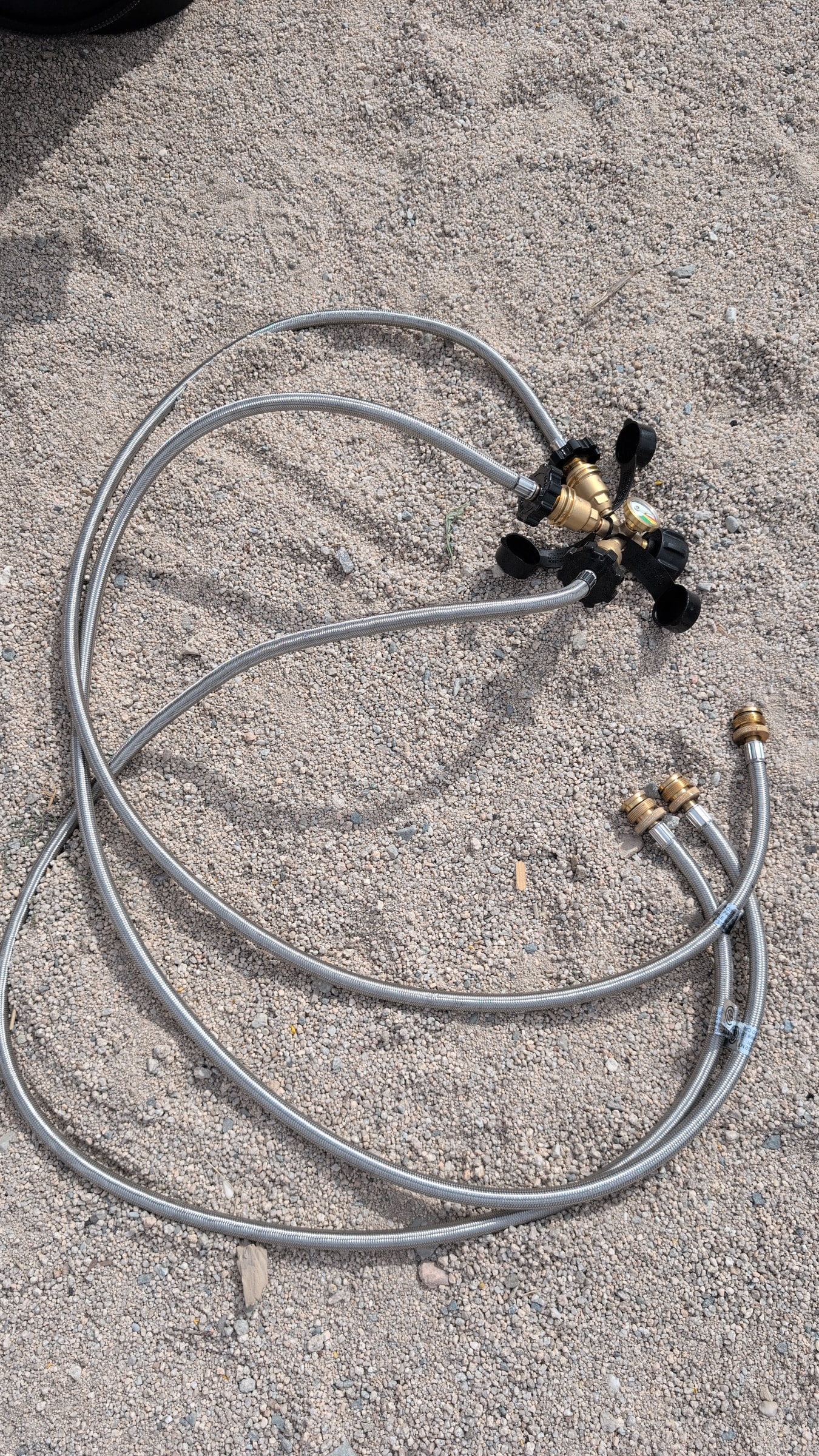

Grab the Triple Propane Adapter and Hoses
Grab the Triple Propane Adapter and Hoses
Lay out the triple propane adapter and the two braided hoses. The adapter has a pressure gauge in the middle and lets both burners run off a single propane tank.

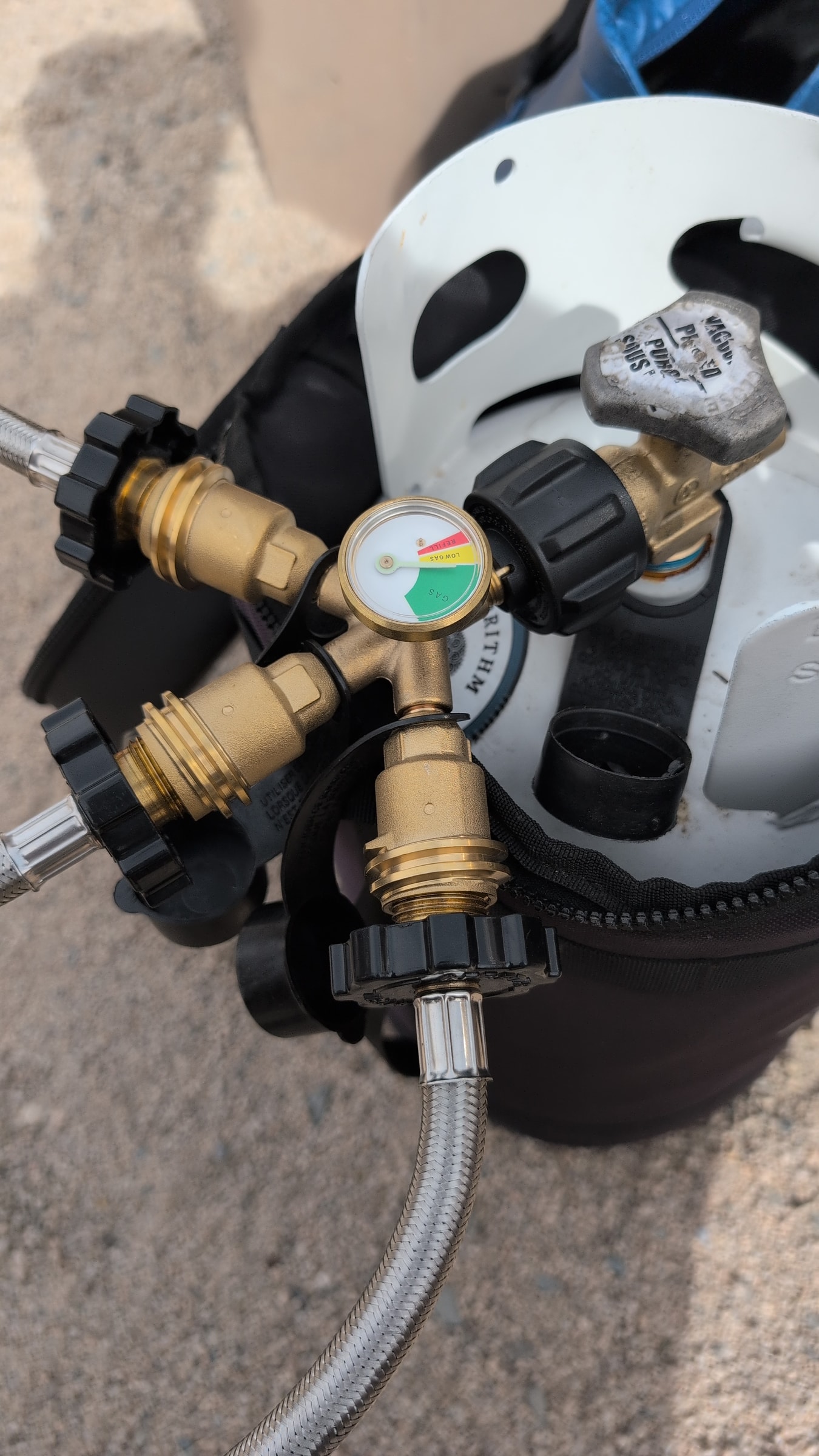

Connect the Hoses and Adapter to the Propane Tank
Connect the Hoses and Adapter to the Propane Tank
Thread each hose onto an output port of the triple adapter, then thread the adapter onto the propane tank valve. Keep the tank valve closed while you make the connections, and hand-tighten everything snug.
Leak Check
Before lighting anything, brush soapy water on each connection and open the tank valve slightly. Bubbles mean a leak that needs tightening or a new seal.

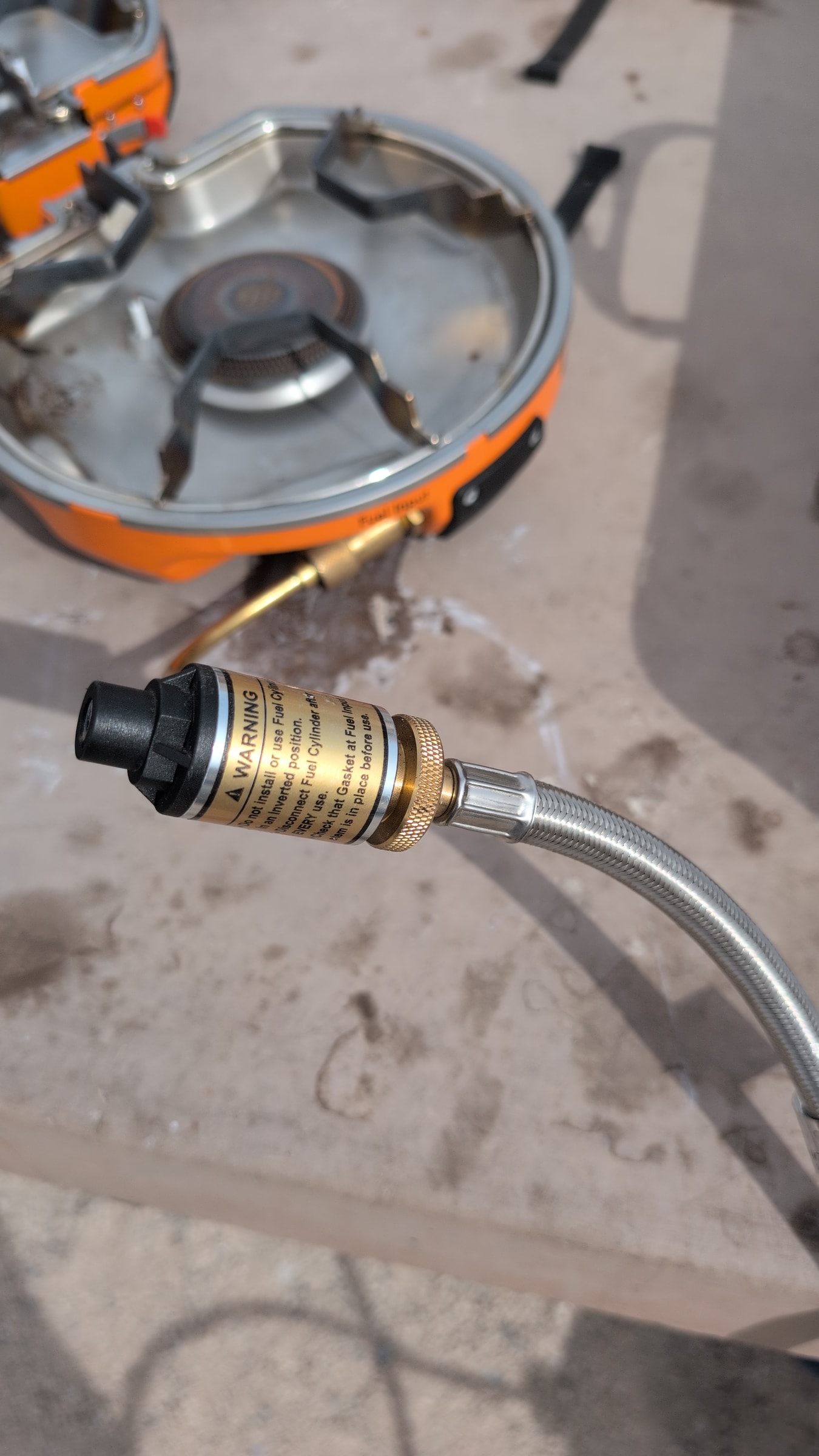

Connect the Hoses to the Burners
Connect the Hoses to the Burners
Attach the free end of each braided hose to the fuel fitting you installed on each Jetboil burner. Hand-tighten firmly without over-torquing.
assembly
Chafing Dish Assembly
Position and stabilize the dishes on the burners

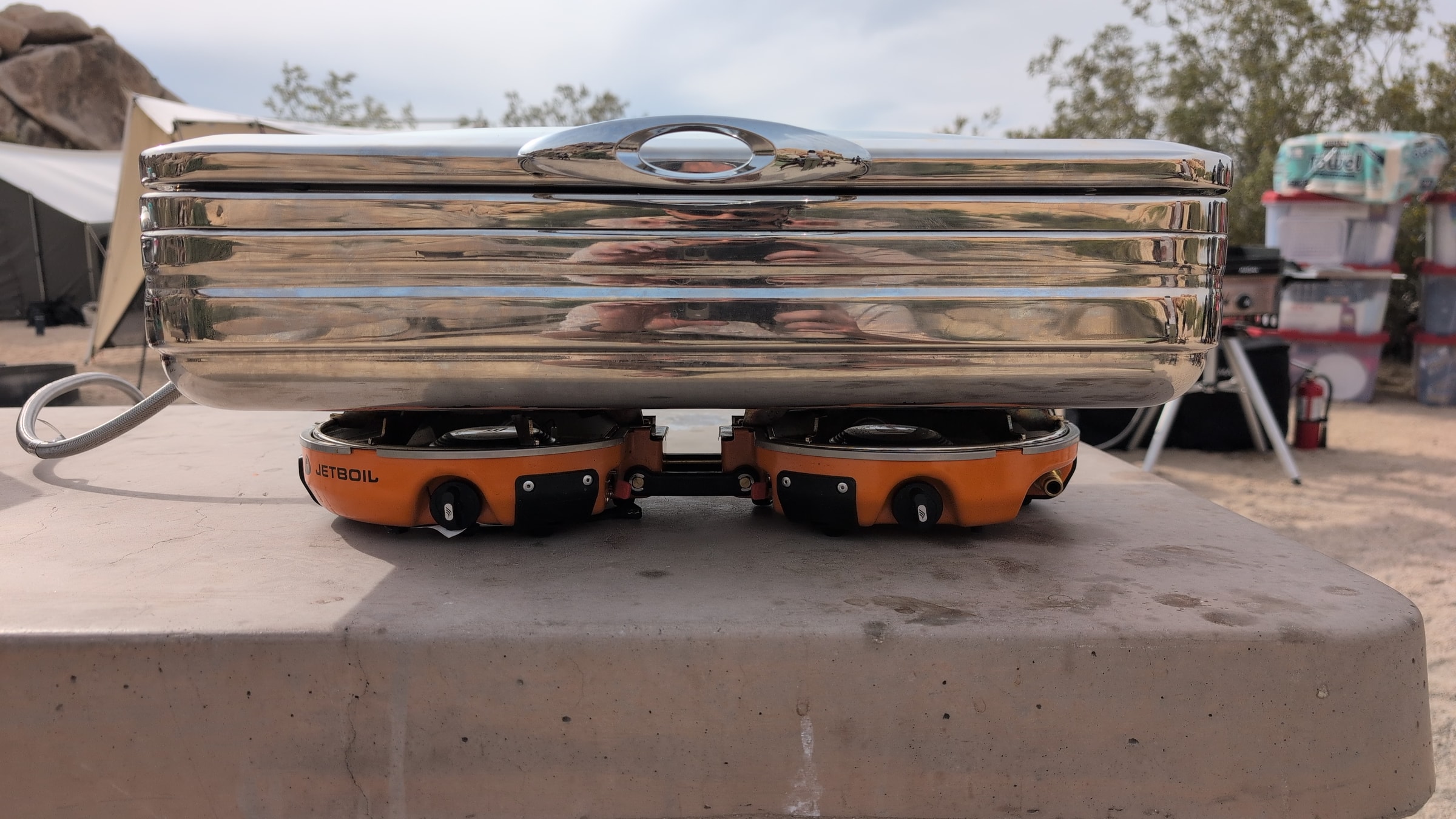

Set the Chafing Dishes on the Burners
Set the Chafing Dishes on the Burners
Center each chafing dish on its burner so the dish sits flat and stable. Make sure the fuel hoses aren't pinched underneath and the burner sits under the middle of the dish for even heat.

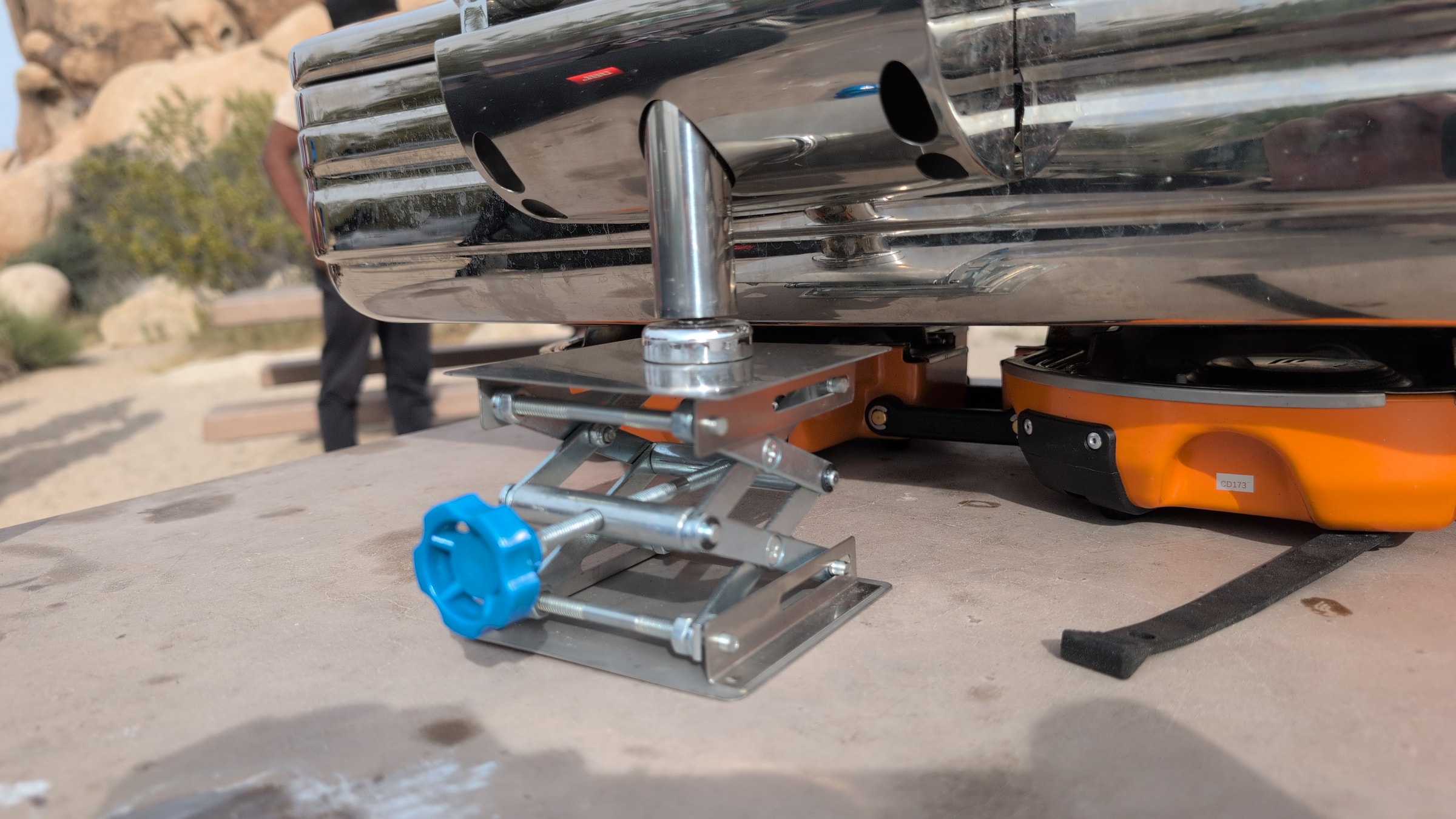

Put the Risers Under the Back of the Dishes
Put the Risers Under the Back of the Dishes
The lid handles make the dishes back-heavy, so slide a metal riser under the back edge of each one. Turn the blue knob to adjust the height until the dish sits level, then press gently on the front handle to confirm it doesn't rock.
operation
Operation
Water first, then flame

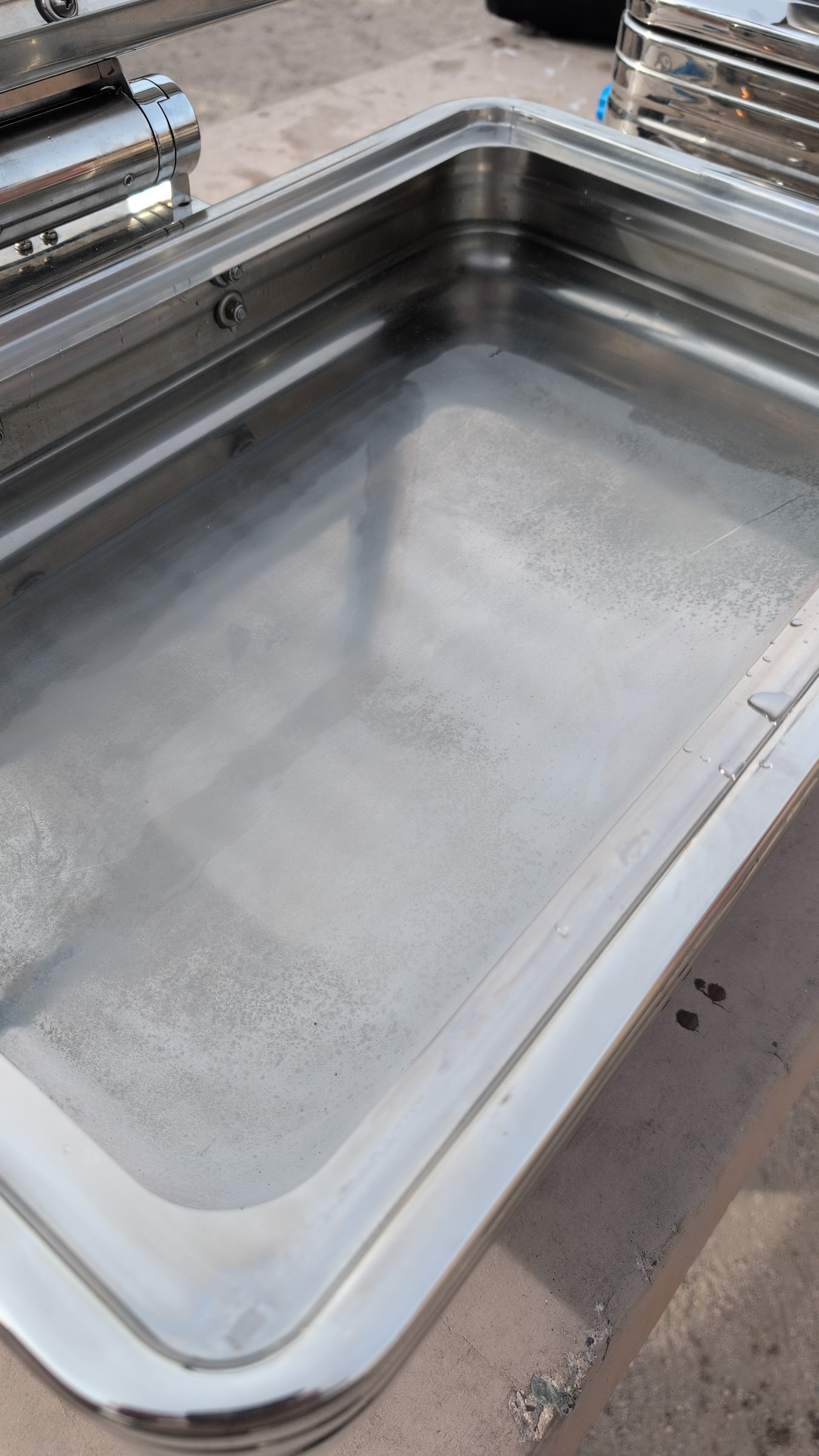

Fill the Dishes with Water Before Lighting
Fill the Dishes with Water Before Lighting
Add water to each chafing dish before the burners go on. The water bath is what heats your food gently and evenly, and running a dish dry can warp the steel.
Never Heat a Dry Dish
Always add water before igniting the burners. An empty dish over flame can warp and create dangerous hot spots.

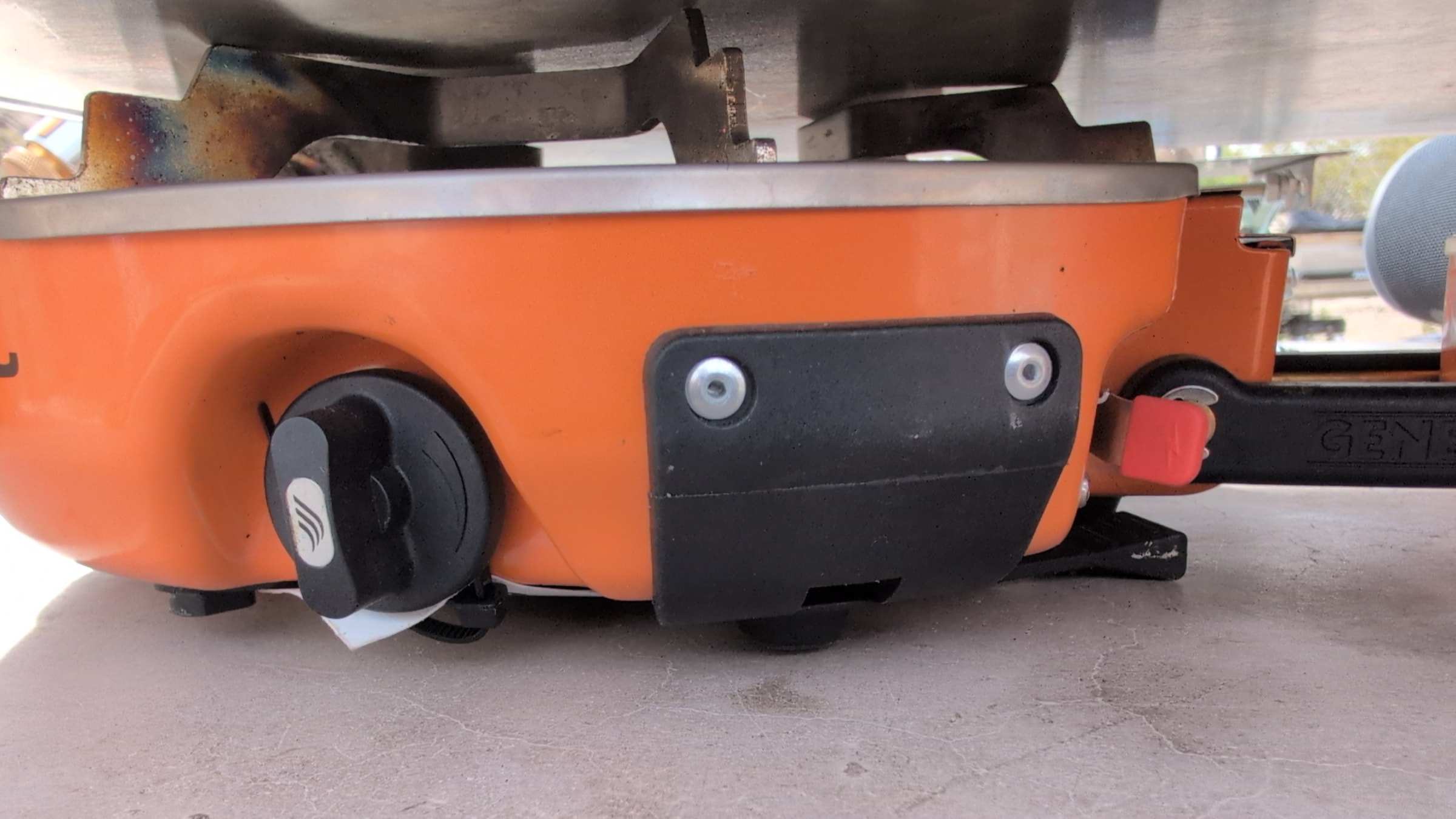

Ignite the Burners and Set to Simmer
Ignite the Burners and Set to Simmer
Open the propane tank valve, then turn the burner knob counterclockwise to start the gas and pull the red lever to ignite the flame. Once the water is steaming, turn the knob back down so it holds a gentle simmer.
- If a burner doesn't light, turn off the gas, wait 30 seconds, and try again
- A healthy flame is blue, not yellow or orange
Hold the Temperature
For food safety, keep the water hot enough that food stays above 140°F. Check now and then and nudge the flame up in windy conditions.
Final checks
Walk the perimeter once and confirm these items before moving in.
- All fuel connections are tight and pass the soapy-water leak check
- Dishes are level and stable with the risers under the back edge
- Water is in every dish before the burners are lit
- Flames are blue and set to a gentle simmer
- Propane tank is upright and secure
Congratulations!
Your chafing dishes are ready to keep dinner hot for the whole crew. Serve it up!
Features
Dual Burner System
Two independent Jetboil burners each have their own control knob, so you can hold different temperatures for different dishes or double your serving capacity.
Triple Propane Adapter with Gauge
One brass adapter runs both burners off a single propane tank, and the built-in pressure gauge gives you a quick read on your fuel supply.
Adjustable Stabilizing Risers
Metal risers with blue adjustment knobs support the back edge of each dish, countering the weight of the lid handles for a level, stable platform.
Stainless Steel Construction
The stainless dishes resist corrosion, spread heat evenly through the water bath, and wipe clean easily at the end of the night.
Quick reference
Burners
2 Jetboil propane burners
Fuel
Single propane tank via triple adapter
Ignition
Red igniter lever on each burner
Golden Rule
Water in the dishes before the flame
Troubleshooting
The burner won't ignite when I pull the red lever. What should I do?
Confirm the tank valve is open and you hear gas when you turn the burner knob, then check the hose connections are tight. If gas is flowing but the spark won't catch, wait 30 seconds between attempts so unburned gas can clear, or light it with a long lighter.
The chafing dish keeps tipping backward. How do I fix this?
That's the lid handle's weight. Slide the metal riser under the back edge of the dish and turn the blue knob until the dish sits level. Keep the dish centered on the burner so the heat stays even.
I smell gas but can't find the leak. What's the safest approach?
Turn off both burner knobs and close the tank valve right away. Brush soapy water on every connection point, open the tank valve slightly, and watch for bubbles. Tighten or re-seat whatever bubbles, and don't use the system until the leak is gone.
The water is boiling too hard and splashing. How do I adjust it?
Turn the burner knob down until the water holds a gentle simmer with steady steam. A rolling boil wastes fuel, splashes water, and dries out the bath faster.
Can I use this setup in windy conditions?
Yes, with a windbreak. Position a table, vehicle, or wind screen between the wind and the flames, expect to run the burners a bit higher, and check the water level more often since it evaporates faster. Never box the burners in fully; propane needs ventilation.
